Elbows

60 Degree Chrome Elbows

    Leg Length
DIA Reduced to Top Leg* Lower Leg** Part Number
5   14 14 L6005-A14-A14-1103
6 5 10 14 L6006-E10-B14-1103
7 5 10 14 L6007-E10-B14-1103
8 5 10 14 L6008-E10-B14-1103
5   9 23 L6005-E09-A23-1103
6   9 23 L6006-E09-A23-1103
7   9 24 L6007-E09-A24-1103
8   8 25 L6008-E09-A25-1103

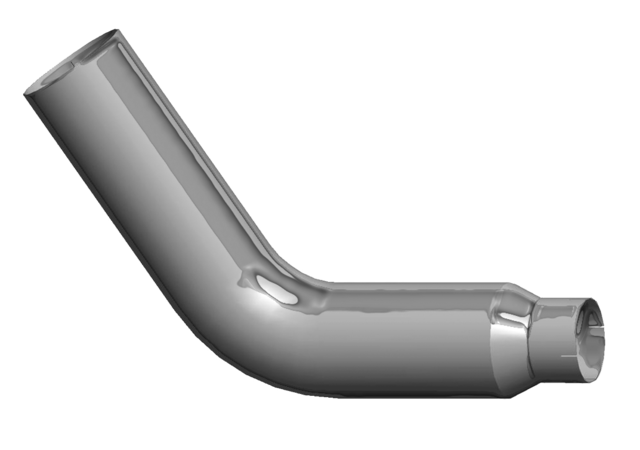

68 Degree Chrome Elbows

    Leg Length
DIA Reduced to Top Leg* Lower Leg** Part Number
6 5 15 17 L6806-E15-B17-1103
7 5 15 17 L6807-E15-B17-1103
8 5 15 17 L6808-E15-B17-1103

90 Degree Seamless Chrome Elbows

    Leg Length
DIA Reduced to Top Leg* Lower Leg** Part Number
6 5 29 20 L9006-E29-B20-1103
7 5 29 20 L9007-E29-B20-1103
8 5 29 20 L9008-E29-B20-1103
6   29 24 L9006-E29-A24-1103
7   29 24 L9007-E29-A24-1103
8   29 24 L9008-E29-A24-1103

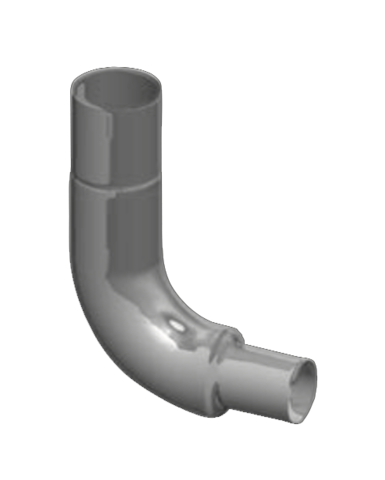

Universal 90 Degree Chrome Elbows

    Leg Length
DIA Reduced to Top Leg* Lower Leg** Part Number
5   12 14 L9005-A12-A14-1103
6 5 15 15 L9006-E15-B15-1103
6 5 20 20 L9006-E20-B20-1103
6 5 23 23 L9006-E23-B23-1103
7 5 15 15 L9007-E15-B15-1103
7 5 20 20 L9007-E20-B20-1103
7 5 26 26 L9007-E26-B26-1103
8 5 15 17 L9008-E15-B17-1103

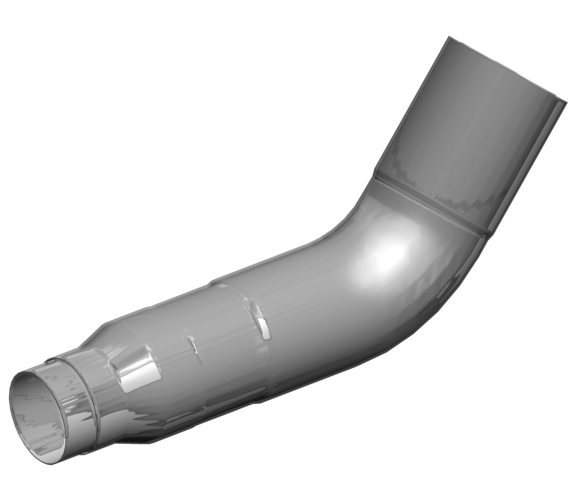

2008-2010 Pete 389 Elbows

    Leg Length
DIA Reduced to Top Leg Lower Leg Part Number
7 5 8 13 PB07-E6451320F-1103 (Driver)
7 5 8 12 PB07-E6344F-1103 (Pass.)
8 5 8 14 PB08-E6451320F-1103 (Driver)
8 5 8 17 PB08-E6344F-1103 (Pass.)

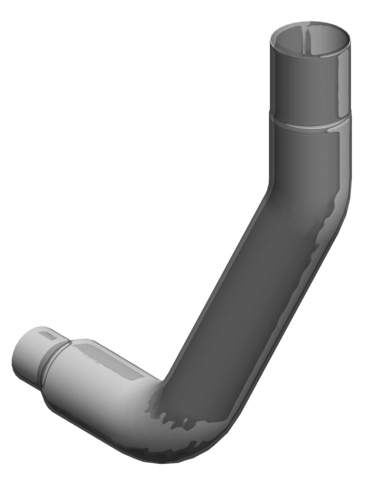

2012 Pete 389 Elbows

    Leg Length
DIA Reduced to Top Leg Lower Leg Part Number
7 5     PB07-E6881F-1103 (Driver)
7 5     PB07-E6879B-1103 (Pass.)

Freightliner Chrome Elbows

    Leg Length
DIA Reduced to Top Leg* Lower Leg** Part Number
6 5 10 15 FL06-E6015B-1103
7 5 10 15 FL07-E6015B-1103
8 5 10 17 FL08-E6015B-1103

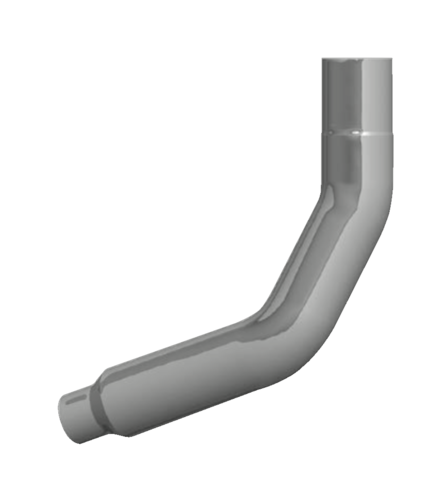

Multi-Bend Chrome Elbow

Reduced to 6 inch 7 inch 8 inch
5 KW06-E14764LB-1103 KW07-E14764LB-1103 KW08-E14764LB-1103
5 KW06-E14764RB-1103 KW07-E14764RB-1103 KW08-E14764RB-1103
5 KW06-E18615LB-1103 KW07-E18615LB-1103 KW08-E18615LB-1103
5 KW06-E18615RB-1103 KW07-E18615RB-1103 KW08-E18615RB-1103
5 KW06-E18616LB-1103 KW07-E18616LB-1103 KW08-E18616LB-1103
5 KW06-E18616RB-1103 KW07-E18616RB-1103 KW08-E18616RB-1103
5 KW06-E1270RB-1103 KW07-E1270RB-1103 N/A
5 KW06-E1270LB-1103 KW07-E1270LB-1103 N/A
  KW06-E1271LB-1103 KW07-E1271LB-1103 N/A
5 KW06-E127RB-1103 KW07-E1271RB-1103 N/A

* A designates OD diameter, requires "C" end form stack
E designates tapered to fit inside of OD ("A" end form) top stack

** A designates OD diameter, no end form
B designates lower leg is reduced to 5 inch OD
C designates expanded to ID diameter
