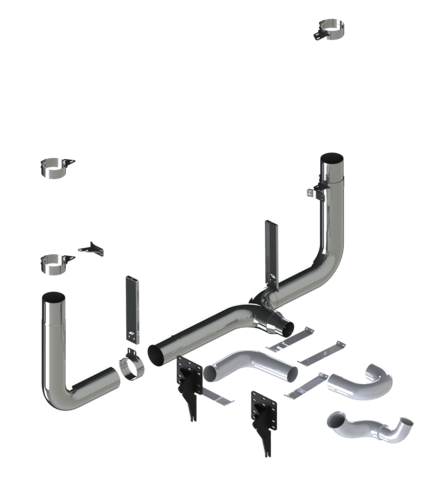

P389-7-3 (2018-Current)
Full Diameter 7" Kit w/ DPF Stainless Steel Exhaust
| Part Number | Description | Qty |
| Y9007-E42-B11-2103 | Large Diameter SS Y Pipe | 1 |
| L9007-E29-A24-2103 | 7" 90 Degree SS Elbow | 2 |
| 50-09053 | 5" Band Clamp | 4 |
| 50-02073 | Angled PB Clamp | 4 |
| 50-01073 | Staight PB Clamp | 2 |
| 14-BU4656 | Bushings | 8 |
| 14-022998 | Angled Cab Bracket | 2 |
| 14-062998 | Y Pipe Support Bracket | 2 |
| 1000220 | DPF Shift Bracket Assembly | 1 |
| 1000217 | DPF Shift Inlet Elbow | 1 |
| 1000228 | DPF Shift Outlet Elbow 1 | 1 |
| 1000229 | DPF Shift Outlet Elbow 2 | 1 |
| 1000142 | Silicone | 1 |

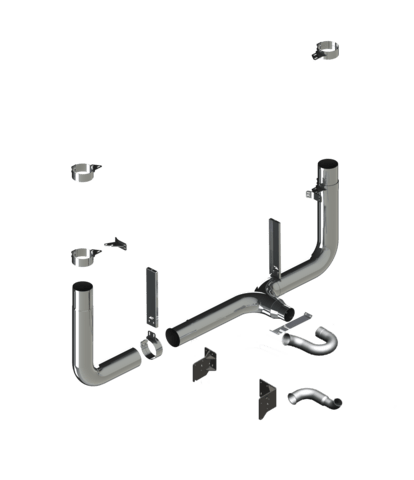

P389-7 (2011-2017)
Full Diameter 7" Kit w/ DPF Stainless Steel Exhaust
| Part Number | Description | Qty |
| Y9007-E42-B11-2103 | Large Diameter SS Y Pipe | 1 |
| L9007-E29-A24-2103 | 7" 90 Degree SS Elbow | 2 |
| 50-09053 | 5" Band Clamp | 1 |
| 50-02073 | Angled Clamp | 4 |
| 50-00073 | Bracketless Clamp | 2 |
| 14-BU4656 | Bushings | 8 |
| 14-022998 | Angled Bracket | 2 |
| 1000077 | Shift Bracket, Rear | 1 |
| 1000076 | Shift Bracket, Front | 1 |
| 1000073 | 4" to 5" DPF Elbow | 1 |
| 1000072 | 5" DPF to Y Pipe | 1 |
| 1000069 | 5" Marman Seal | 2 |
| 1000068 | 4" Marman Seal | 1 |

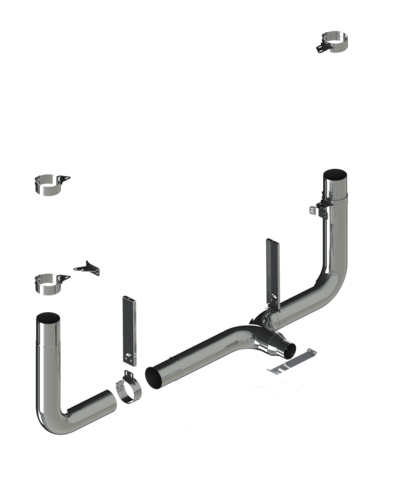

P389-7-2
Full Diameter 7" Stainless Steel Glider Kit
| Part Number | Description | Qty |
| Y9007-E42-B11-2103 | Large Diameter SS Y Pipe | 1 |
| L9007-E29-A24-2103 | 7" 90 Degree SS Elbow | 2 |
| 50-09053 | 5" Band Clamp | 1 |
| 50-02073 | Angled PB Clamp | 4 |
| 50-01073 | Straight PB Clamp | 2 |
| 14-BU4656 | Bushings | 8 |
| 14-022998 | Angled Cab Bracket | 2 |
| 14-062998 | Y Pipe Support Bracket | 2 |
| Stack Length | Total Height* |
| 36" | 11' 6" |
| 48" | 12' 6" |
| 54" | 13' 0" |
| 60" | 13' 6" |
| 64" | 13' 10"** |
| 68" | 14' 2"** |
Total height is approximate. We recommend measuring your truck for exact height measurement.
**Denotes stack heights may be overheight and are not recommended by Lincoln Chrome.
